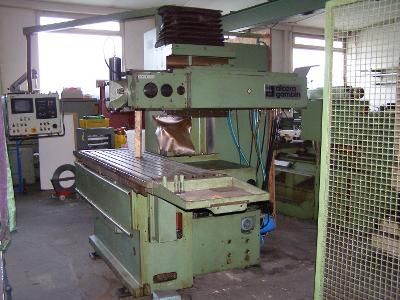

CNC Milling Machine ALCERA-GAMBIN 160 CA
| Category | CNC Milling Machines and Machining Centers ALCERA-GAMBIN › |
| Manufacturer | ALCERA-GAMBIN › |
ARCHIVED AD
CNC Milling Machine ALCERA-GAMBIN 160 CA was manufactured by the machine manufacturer ALCERA-GAMBIN. Machine ALCERA-GAMBIN 160 CA was built in 1986 year.
General data | |
|---|---|
| Location | Germany |
| Year of manufacture | 1986 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - paid separately |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
| Stock number | 051020 |
Technical parameters | |
|---|---|
| Number of CNC controlled axles | 3 pcs |
| Minimum rotary speed of the vertical spindle | 32 1/min |
| Maximum rotary speed of the vertical spindle | 1600 1/min |
| Travel length X-axis (mechanical feed) | 1600 mm |
| Travel length Y-axis (mechanical feed) | 600 mm |
| Travel length Z-axis (mechanical feed) | 630 mm |
| Total power demand | 9 kW |
| Machine height | 2650 mm |
| Machine length | 3200 mm |
| Machine width | 2800 mm |
Equipment | |
|---|---|
| Heidenhain Heidenhain TNC 150 B | |
| Technical documentation | |
