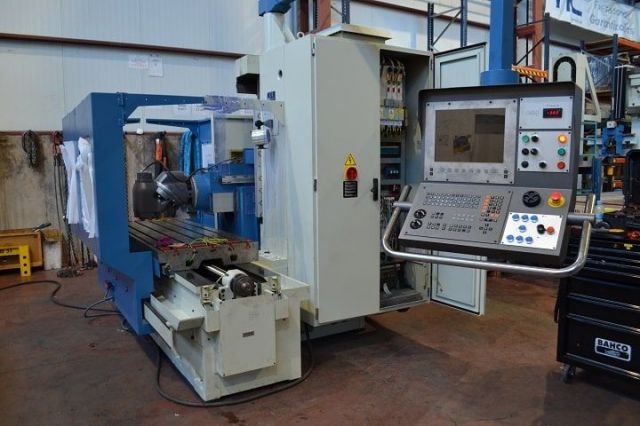

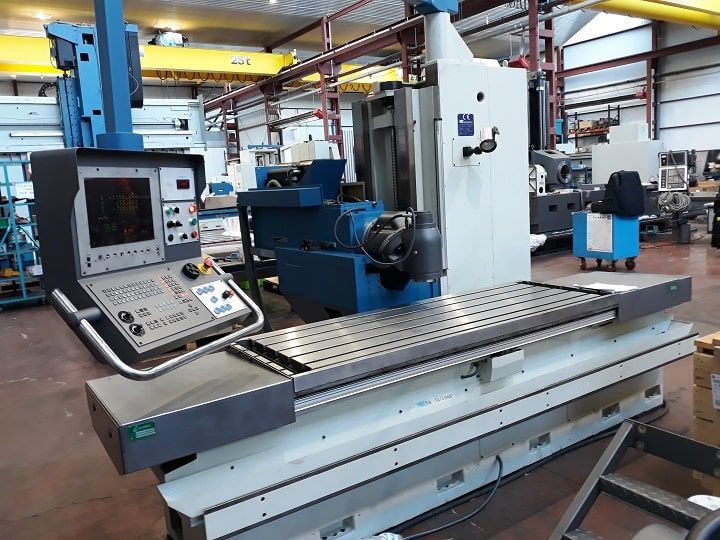

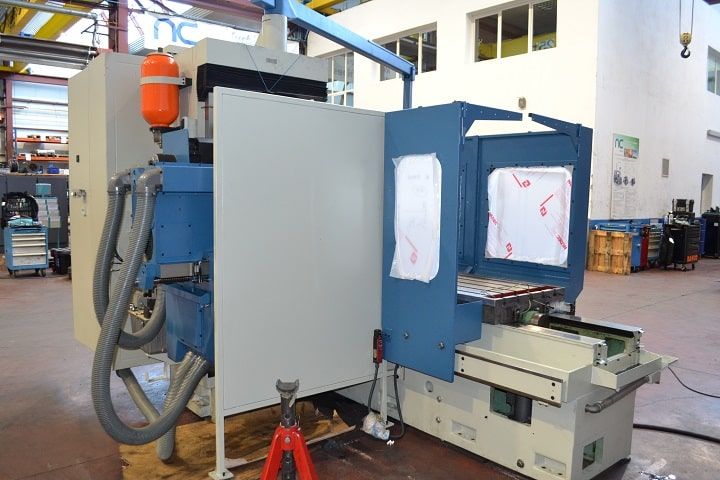

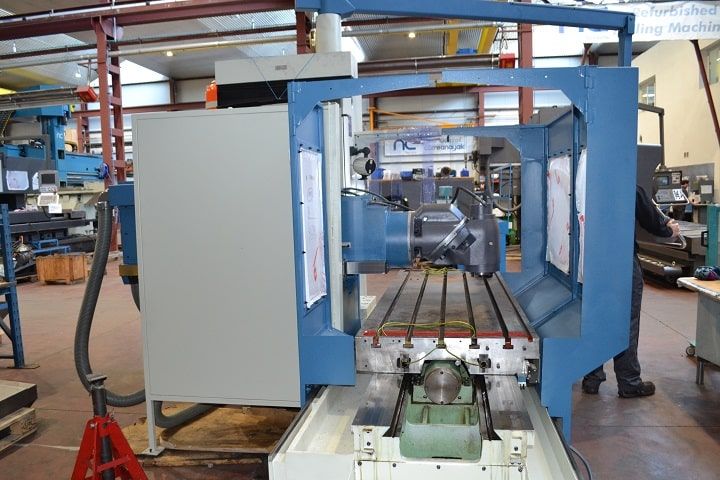

CNC Milling Machine CORREA CF17D (968732)

Category CNC Milling Machines and Machining Centers CORREA ›
Manufacturer CORREA ›

ARCHIVED AD
CNC Milling Machine CORREA CF17D (968732) was manufactured by the machine manufacturer CORREA. Machine CORREA CF17D (968732) was built in 2001 year.

General data

Location Spain
region Burgos
Year of manufacture 2001
Warranty Warranty for 6 months
Technical condition After complete renovation
Stock number 968732

Technical parameters

Length of the working table 2000 mm
Width of the working table 700 mm
Maximum table load (evenly distributed) 3500 kg
Power of the spindle drive 17 kW
Number of CNC controlled axles 3 pcs
Travel length X-axis (mechanical feed) 2000 mm
Travel length Y-axis (mechanical feed) 800 mm
Travel length Z-axis (mechanical feed) 800 mm
Machine height 2760 mm
Machine length 5265 mm
Machine width 3250 mm
Machine weight 9 t

Equipment

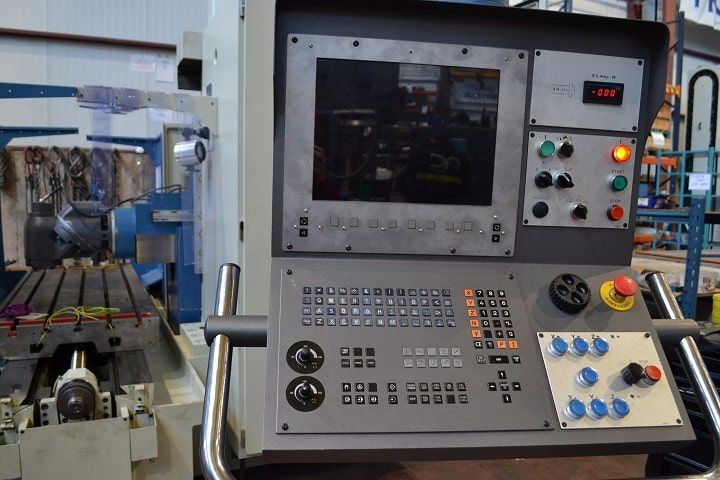

HEIDENHAIN TNC-426
Technical documentation
