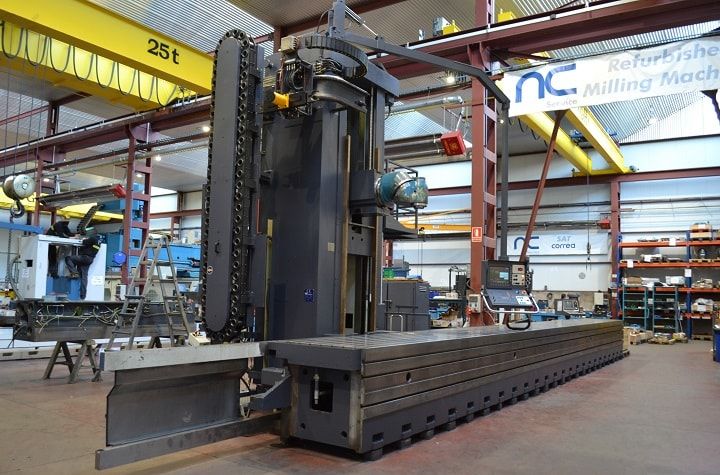

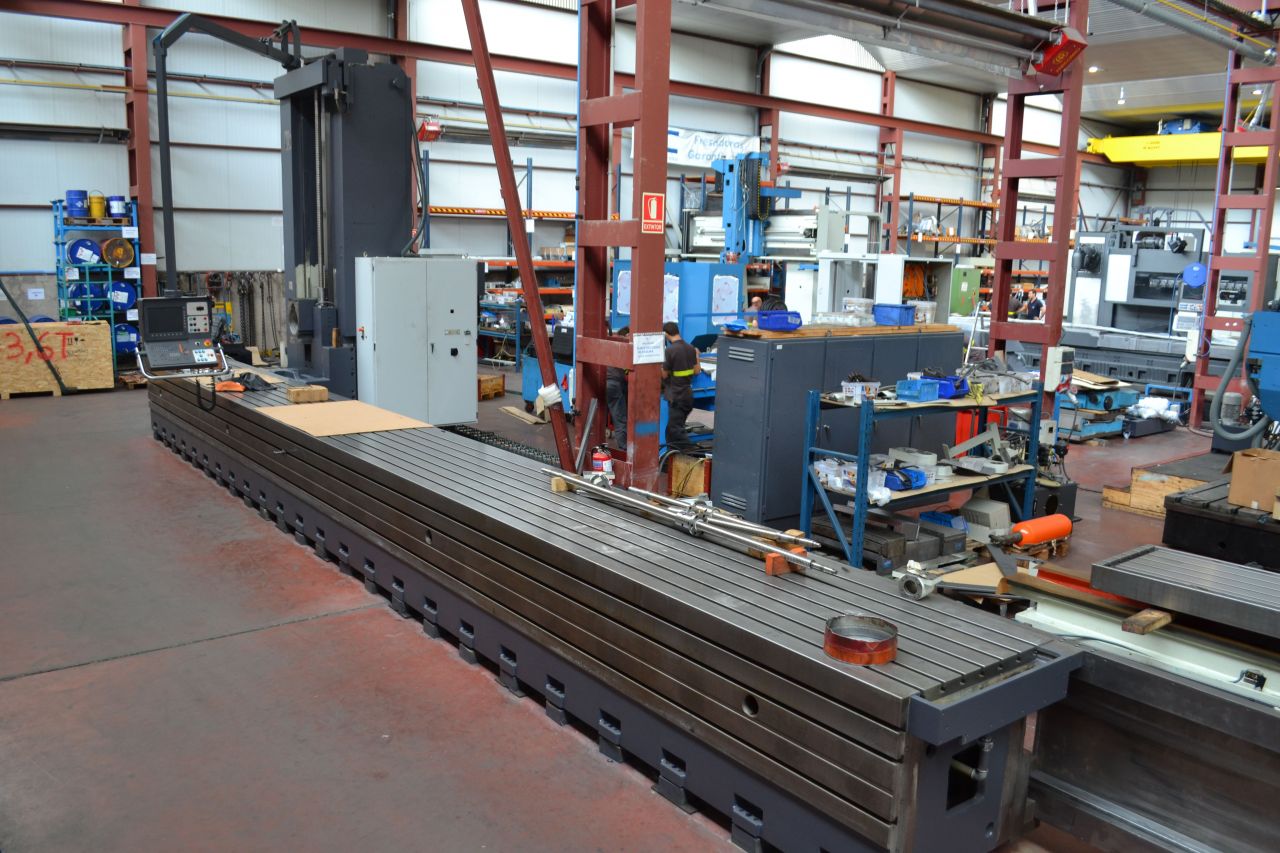

CNC Milling Machine CORREA L30/104 (7901103)

Category CNC Milling Machines and Machining Centers CORREA ›
Manufacturer CORREA ›

ARCHIVED AD
CNC Milling Machine CORREA L30/104 (7901103) was manufactured by the machine manufacturer CORREA. Machine CORREA L30/104 (7901103) was built in 1998 year.

General data

Location Spain
Year of manufacture 1998
Warranty Warranty for 6 months
Technical condition After complete renovation

Technical parameters

Length of the working table 12240 mm
Width of the working table 1000 mm
Maximum table load (evenly distributed) 42000 kg
Power of the spindle drive 30 kW
Number of CNC controlled axles 3 pcs
Travel length X-axis (mechanical feed) 10450 mm
Travel length Y-axis (mechanical feed) 12000 mm
Travel length Z-axis (mechanical feed) 25000 mm
Total power demand 30 kW
Machine height 5600 mm
Machine length 16000 mm
Machine width 4830 mm
Machine weight 45 t

Equipment

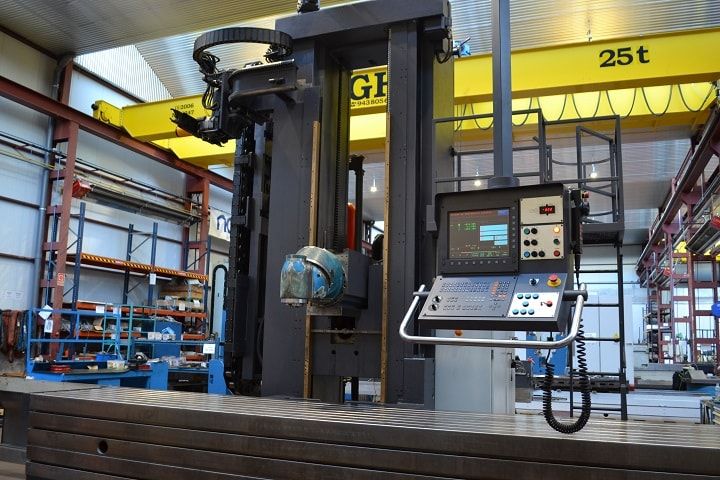

HEIDENHAIN TNC-426
Technical documentation
