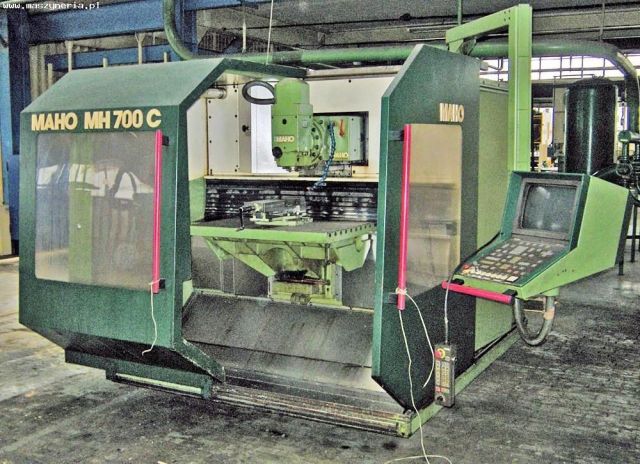

CNC Milling Machine MAHO MH 700C
CNC Milling Machine MAHO MH 700C was manufactured by the machine manufacturer MAHO. Machine MAHO MH 700C was built in 1988 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 1988 |
| Warranty | Without warranty |
| Technical condition | Good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Maximum table load (evenly distributed) | 600 kg |
| Minimum rotary speed of the vertical spindle | 20 1/min |
| Maximum rotary speed of the vertical spindle | 6300 1/min |
| Travel length of the quill | 80 mm |
| Travel length X-axis (mechanical feed) | 700 mm |
| Travel length Y-axis (mechanical feed) | 500 mm |
| Travel length Z-axis (mechanical feed) | 600 mm |
| Maximum feed rate in X-axis | 3000 mm/s |
| Maximum feed rate in Y-axis | 4000 mm/s |
| Maximum feed rate in Z-axis | 3000 mm/s |
| Total power demand | 20 kW |
| Number of T-slots in the table | 9 pcs |
| Machine height | 2090 mm |
| Machine length | 3134 mm |
| Machine width | 3155 mm |
| Machine weight | 4.3 t |
Equipment | |
|---|---|

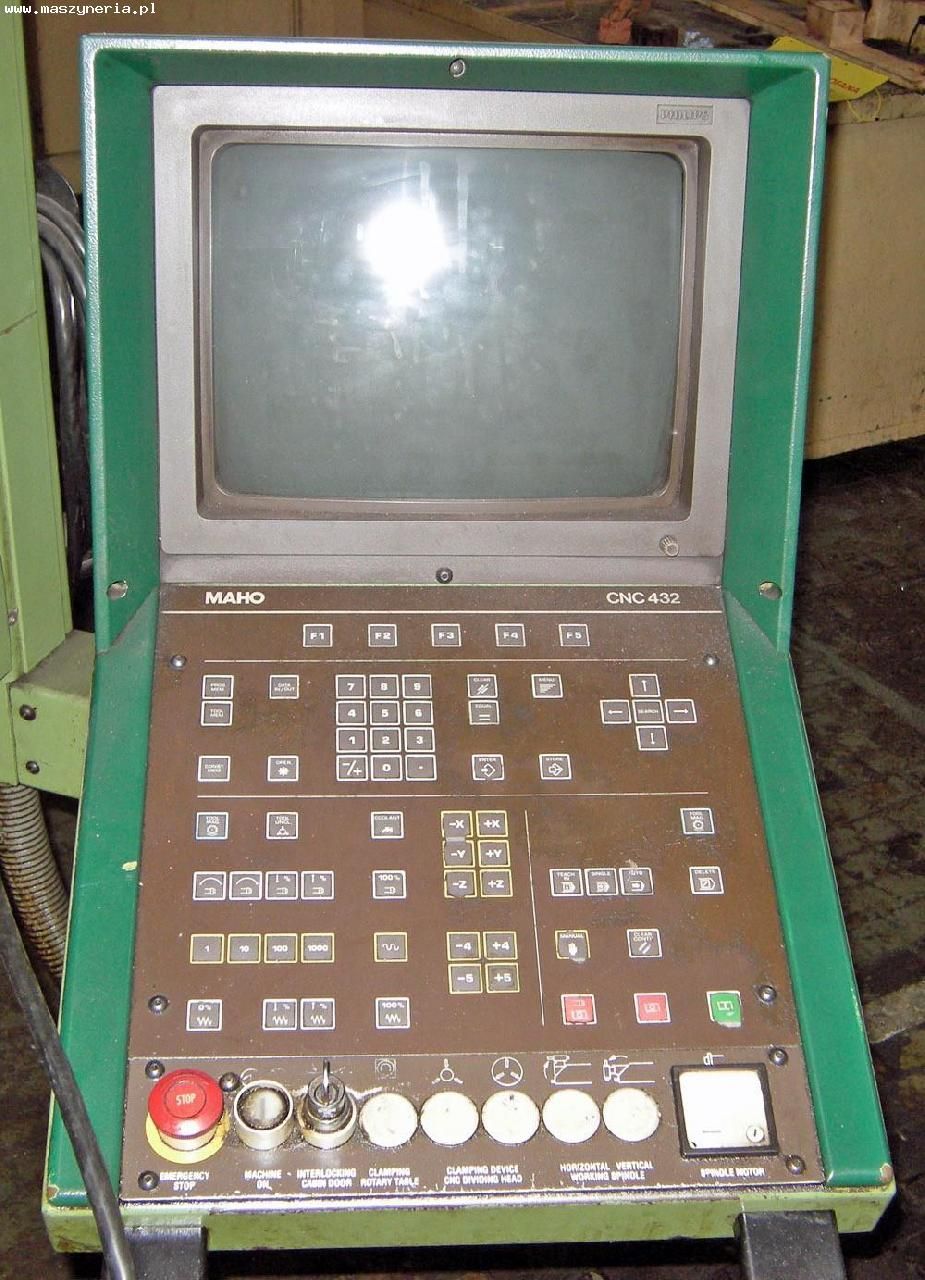

| MAHO CNC 432 | |
| Technical documentation | |
