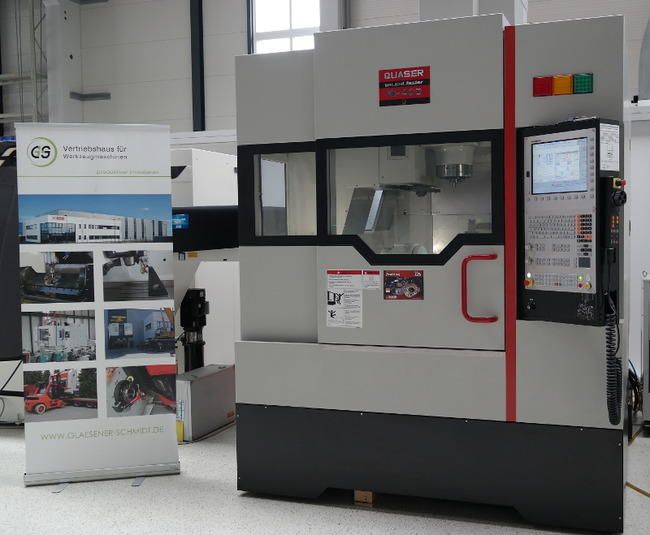

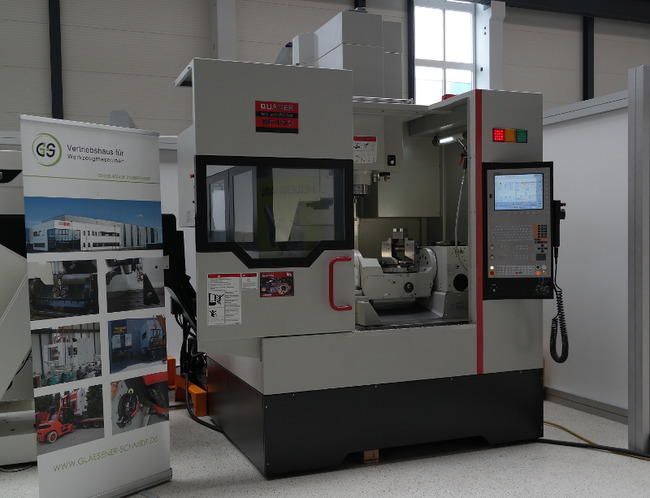

CNC Vertical Machining Center QUASER MF 400 U

Category CNC Milling Machines and Machining Centers QUASER ›
Manufacturer QUASER ›

ARCHIVED AD
CNC Vertical Machining Center QUASER MF 400 U was manufactured by the machine manufacturer QUASER. Machine QUASER MF 400 U was built in 2014 year.

General data

Location Germany
region Bayern
Year of manufacture 2014
Warranty Without warranty
Stock number 89-0000-51274

Technical parameters

Length of the working table 400 mm
Width of the working table 400 mm
Number of CNC controlled axles 5 pcs
Number of tools in the magazine 30 pcs
Maximum rotary speed of the vertical spindle 12000 1/min
Travel length X-axis (mechanical feed) 410 mm
Travel length Y-axis (mechanical feed) 610 mm
Travel length Z-axis (mechanical feed) 500 mm
Machine height 3100 mm
Machine length 2500 mm
Machine width 2900 mm
Machine weight 7.3 t

Equipment

HEIDENHAIN iTNC 530
Liquid cooling system
