CNC Vertical Machining Center QUASER MV 154 APC E 12B
| Net price | Ask› |
| Company name |
AMARON s.r.o. (Ltd.)
M. Naji |
| Address | info@amaron-trading.com |
| City | Brno |
| Post code | 602 00 |
| region | Jihomoravský kraj |
| Country | Czech Republic |
| Telephone |
+420 542 210 850
+420 776 115 345 |
| Category | CNC Milling Machines and Machining Centers QUASER › |
| Manufacturer | QUASER › |

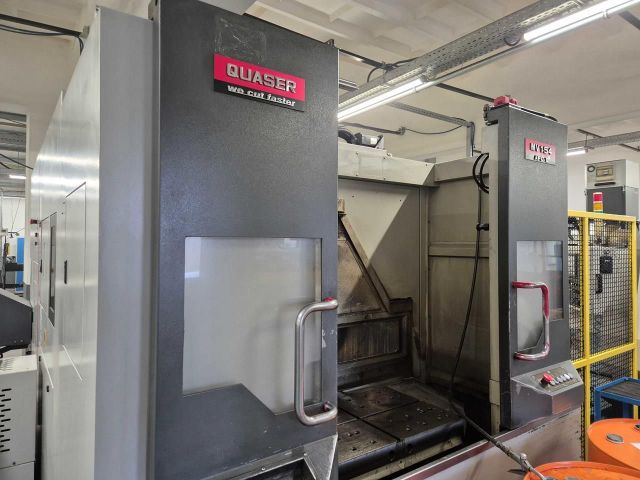

CNC Vertical Machining Center QUASER MV 154 APC E 12B was manufactured by the machine manufacturer QUASER. Machine QUASER MV 154 APC E 12B was built in 2012 year.
General data | |
|---|---|
| Location | Czech Republic |
| region | Jihomoravský kraj |
| Year of manufacture | 2012 |
| Warranty | Without warranty |
| Technical condition | Good |
| Loading | The buyer organizes the loading at his own cost |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
| Stock number | 8906 |
Technical parameters | |
|---|---|
| Length of the working table | 800 mm |
| Width of the working table | 500 mm |
| Maximum table load (evenly distributed) | 250 kg |
| Minimum rotary speed of the vertical spindle | 50 1/min |
| Maximum rotary speed of the vertical spindle | 12000 1/min |
| Travel length X-axis (mechanical feed) | 700 mm |
| Travel length Y-axis (mechanical feed) | 500 mm |
| Travel length Z-axis (mechanical feed) | 560 mm |
| Machine height | 3080 mm |
| Machine length | 4250 mm |
| Machine width | 2850 mm |
| Machine weight | 8.5 t |
Equipment | |
|---|---|
| FANUC Oi-MD | |
