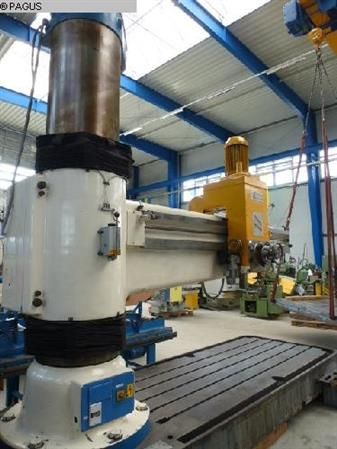

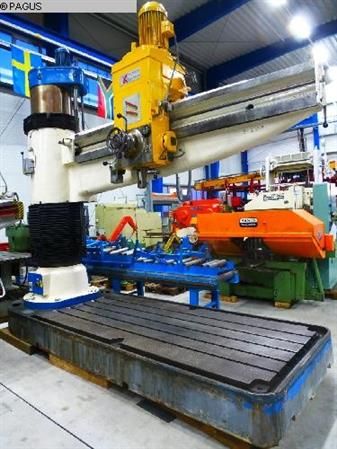

Radial Drilling Machine CSEPEL RFH 100-3000

Category Drilling Machines CSEPEL ›
Manufacturer CSEPEL ›

ARCHIVED AD
Radial Drilling Machine CSEPEL RFH 100-3000 was manufactured by the machine manufacturer CSEPEL. Machine CSEPEL RFH 100-3000 was built in 1975 year.

General data

Location Germany
region Sachsen
Year of manufacture 1975
Warranty Without warranty

Technical parameters

Maximum drilling diameter in steel 100 mm
Maximum drilling diameter in light metals 120 mm
Maximum spindle travel 400 mm
Maximum reach (maximum distance of the spindle axis from the column) 3000 mm
Minimum distance from the spindle nose to the base 440 mm
Maximum distance from the spindle to the base 2100 mm
Number of rotary speeds of the spindle 21 pcs
Minimum rotary speed of the spindle 18 1/min
Maximum rotary speed of the spindle 1800 1/min
Length of the base 3160 mm
Width of the base 1550 mm
Total power demand 15 kW
Machine height 4130 mm
Machine length 3725 mm
Machine width 1550 mm
Machine weight 12.1 t

Equipment

Technical documentation
