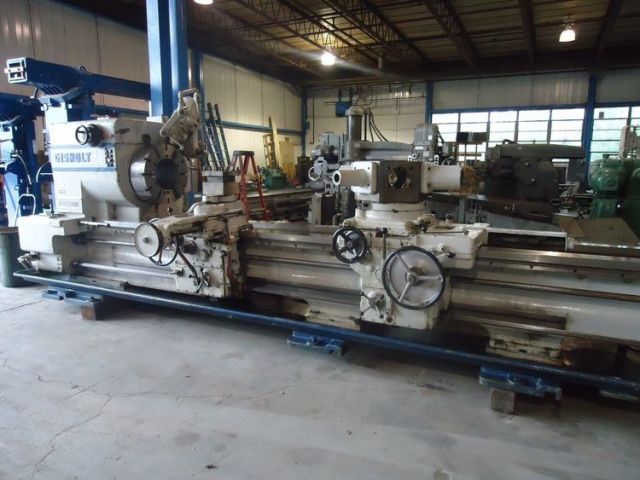

Universal Lathe GISHOLT 5 L
Universal Lathe GISHOLT 5 L was manufactured by the machine manufacturer GISHOLT. Machine GISHOLT 5 L was built in 1953 year.
General data | |
|---|---|
| Location | United States |
| region | Illinois |
| Year of manufacture | 1953 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum length of the turning | 3454.4 mm |
| Turning diameter over bed (max) | 965.2 mm |

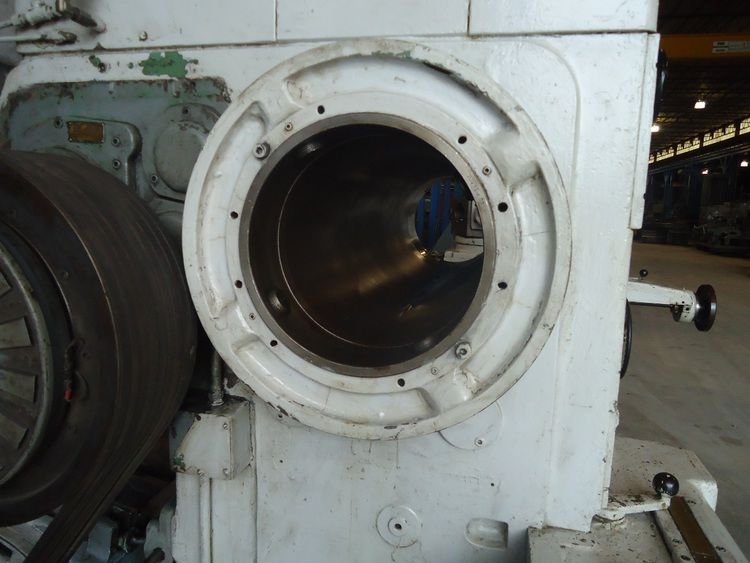

| Spindle bore | 317.5 mm |
| Power of the spindle | 29.8 kW |
| Minimum rotary speed of the spindle | 3 1/min |
| Maximum rotary speed of the spindle | 400 1/min |
Equipment | |
|---|---|
| 3-jaw chuck | |
| Taper turning attachment | |
| 4-way tool post | |
| Cooling system | |
